TEFEN Reducing Elbow Hose Connector PVDF

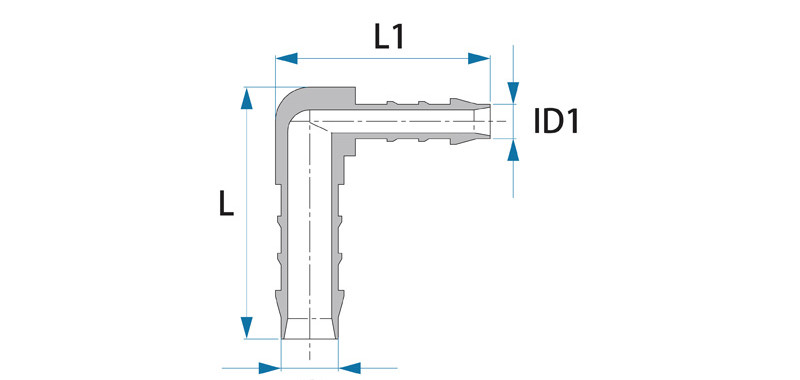

Specifications

Part NO.

ID

ID1

L

L1

12556645441

5 mm

4 mm

31.8 mm

27.8 mm

12556646441

6 mm

4 mm

35.5 mm

34.1 mm

12556646451

6 mm

5 mm

35.4 mm

34.1 mm

12556648461

8 mm

6 mm

41.6 mm

39.3 mm

12556650461

10 mm

6 mm

45.3 mm

40.1 mm

12556650481

10 mm

8 mm

42.1 mm

45.2 mm

12556652501

12 mm

10 mm

48.7 mm

45.6 mm

12556654521

14 mm

12 mm

51.5 mm

49.6 mm

12556656541

16 mm

14 mm

53.8 mm

53.6 mm

12556659561

19 mm

16 mm

56.2 mm

56.1 mm


Part NO.

ID

ID1

L

L1

12356603021

3/16"

5/32"

31.8 mm

27.9 mm

12356604031

1/4"

3/16"

35.5 mm

34 mm

12356605041

5/16"

1/4"

41.6 mm

39.4 mm

12356606041

3/8"

1/4"

45.3 mm

40.2 mm

12356606051

3/8"

5/16"

45.5 mm

42.5 mm

12356608061

1/2"

3/8"

48.6 mm

45.8 mm

12356609081

9/16"

1/2"

51.1 mm

49.8 mm

12356610091

5/8"

9/16"

53.6 mm

53.6 mm

12356612101

3/4"

5/8"

55.8 mm

55.8 mm

CONTACT US FOR MORE INFORMATION

12556645441 12556646441 12556646451 12556648461 12556650461 12556650481 12556652501 12556654521 12556656541 12556659561 12356603021 12356604031 12356605041 12356606041 12356606051 12356608061 12356609081 12356610091 12356612101
