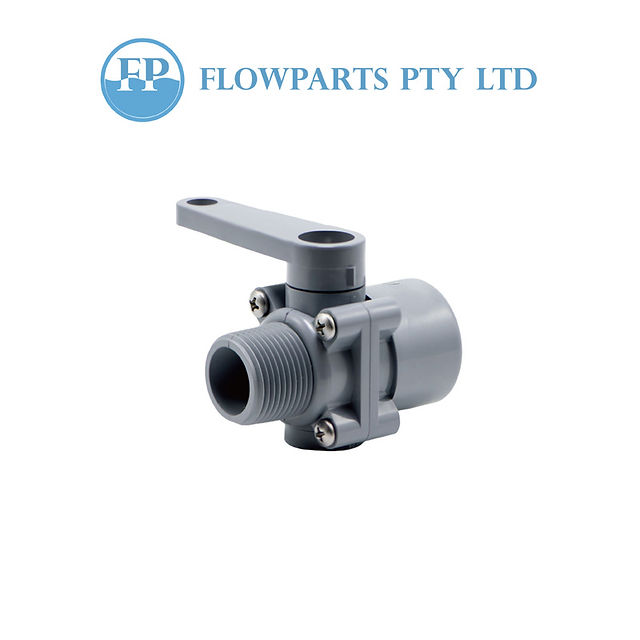

SMC 250 Series Two-Way Ball Valve


Design Considerations

  • The 250 Series Two-Way Ball Valve design promotes multiple configurations to fit the exact end use application.

  • Gray PVC is the standard material and is an NSF Standard 61 Approved Material.

  • The Lever Handle is standard with an optional Mini-T Handle or Round Handle available.


Specifications

Material Options

Body, Ends, Ball and Handle - Gray PVC (Standard), White Polypropylene, Gray Polypropylene

Screws - Stainless

End Options

1/4"Female NPT, 1/2"Female NPT, 3/4"Female NPT

1/2"Socket, 3/4"Socket

1/2"Male NPT, 3/4"Male NPT

1/2"BIB (Smooth Barb)

3/8"Barb, 1/2"Barb, 5/8"Barb, 3/4"Barb

Seal Options

Buna-N, Ethylene Propylene, Fluoroelastomer (Viton®)

Handle Options

Lever Handle (Standard)

T Handle

Round Handle

1.0"Offset Extended Handle

Miscellaneous Options

1/2"&"3/4Female NPT Stainless Support Rings

Stainless Mounting Bracket

Ball Through Hole Diameter

0.5"

Maximum Operating Pressure

125 PSI

Maximum Operating Temperature

140 °F

CONTACT US FOR MORE INFORMATION
